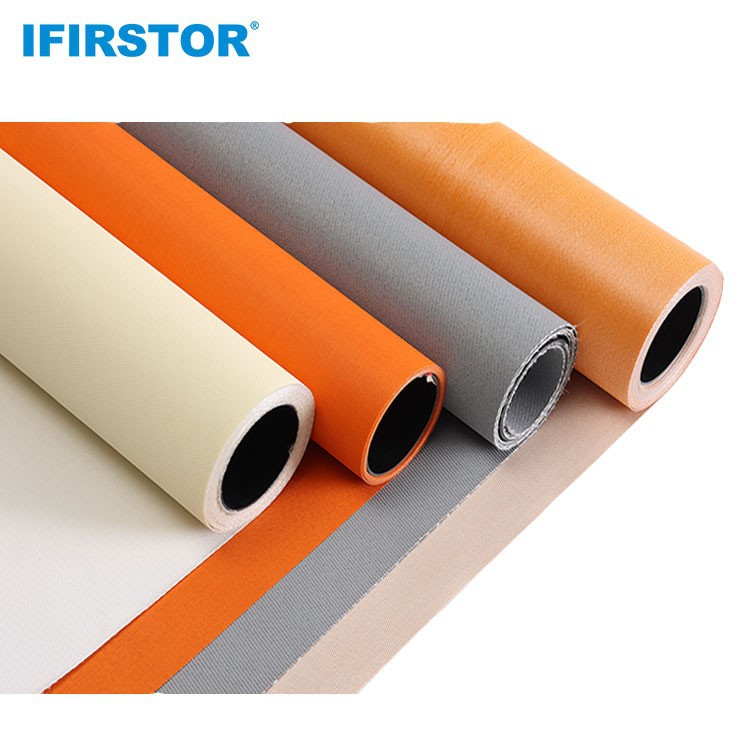

Silicone Coated Fiberglass Fabric

Fiberglass fabric coated with silicone rubber is made with the basal material of high temperature resistant fiberglass fabric and silicone rubber by follow-processing; it is a compound material with high quality of performance. It has been widely used in spaceflight, chemical industry, petroleum, large generating electricity equipment, machinery, metallurgy, electric insulation, construction, pipeline ductile conjunction, chemical corrosion resistant, sealing, etc.

Send Inquiry Chat Now

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Silicone Fiberglass Welding Blanket Fabrics

Main Characteristics

Silicone-coated fabrics exhibit excellent resistance to both high and low temperatures, maintaining performance from -70°C to 280°C, and offer outstanding thermal insulation properties;
Good flame retardant properties (up to B1 level);
Heat aging resistance, weather aging resistance, and resistance to ozone, oxygen, light, etc;
High Temperature Silicone Fabric with UV resistance (UVF >40 and UVA <5%);

Good corrosion resistance (good resistance to acids, alkalis and a variety of organic solvents, their own damage is small), oil and water resistance;
High insulation performance (breakdown voltage ≥ 15KV);
High strength (with substrate enhancement), substrate structure is tight, good sealing performance;
Good processability (soft and toughness, folding resistance), can be cut and processed.

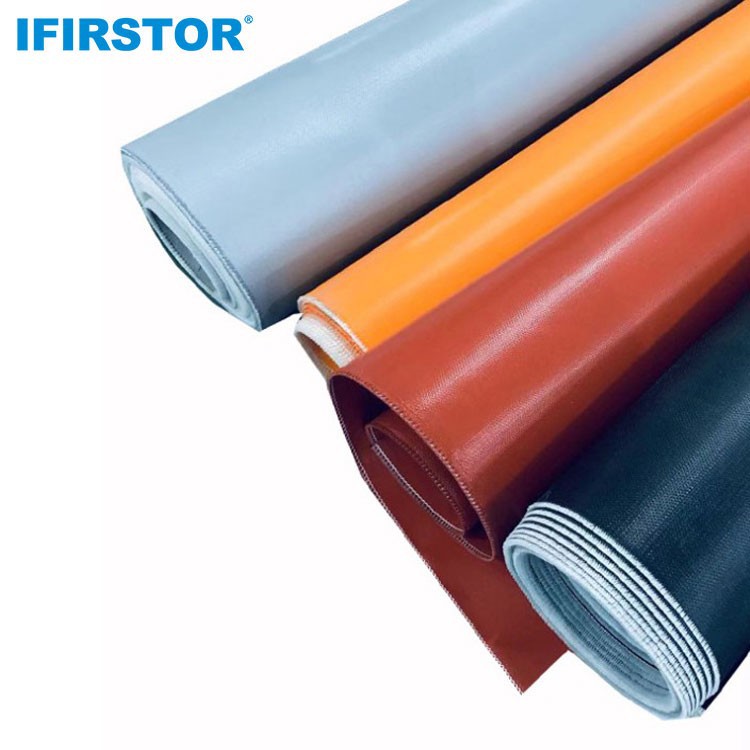

Fiberglass fabric with double-sided silicone coating

Main Specifications

Thickness: 0.2mm-3mm

Width: 1m-2.5m

Specifications	Thickness (mm)	Weight (g / ㎡)	Flame retardant properties	Color, width, weight, thickness
C / HGE-A 120	0.12 ± 0.02	1 50 ± 20	V0 level (or B 1 level)	Gray, dark gray, iron red, orange red, black, white, silver (customizable); Maximum width 330cm, regular widths 100cm, 127cm, 153cm (customizable); Single-sided, double-sided and multi-layer composite forms can be produced; Specific thickness and weight can be customized through negotiation, this table is for reference only; Available thickness range: 0.1-5mm.
C / HGE-A150	0.15 ± 0.02	2 50 ±3 0
C / HGE-A200	0.2 ± 0.02	300 ±3 5
C / HGE-A300	0.3±0.03	4 00 ±5 0
C / HGE-A350	0.35 ± 0.03	4 50 ±5 0
C / HGE-A450 B	0.48 ± 0.03	5 50 ±6 0
C / HGE-A850 S	0.9 ± 0.05	1 000 ±1 00
C / HGE-A1100 S	1.1 ± 0.11	1 700 ±1 70
C / HGE-A1300 S	1.3 ± 0.13	2 000 ± 200

Series	Specifications	Thickness (mm)	Flame retardant properties	Color, width, weight, thickness
F-HGL series	F-HGL-1000	1	V0 level (or B 1 level)	Gray, dark gray, iron red, orange red, black, white, silver (customizable); Maximum width 330cm, regular widths 100cm, 127cm, 153cm (customizable); Single-sided, double-sided and multi-layer composite forms can be produced; Specific thickness and weight can be customized through negotiation, this table is for reference only; Available thickness range: 0.1-5mm.
	F-HGL-2000	2
	F-HGL-3000	3
	F-HGL-4000	4
	F-HGL-5000	5
FC-HGL series	F C- HGL-1000	1
	FC - HGL-2000	2
	FC - HGL-3000	3
	FC - HGL-4000	4
	FC - HGL-5000	5
F 2 C-HGL series	F ZC- HGL-1000	1
	F ZC -HGL-2000	2
	F ZC -HGL-3000	3
	F ZC -HGL-4000	4
	F ZC -HGL-5000	5

Note: The above are only some of the commonly used specifications and parameters of our company. If you need other models or have customized requirements, please consult (FSD) business personnel.

Disclaimer: The above technical parameters and pictures are for reference only and are not used as the technical basis for each batch of actual products supplied.

Grey Lightweight Silicone Coated Fibreglass Cloth

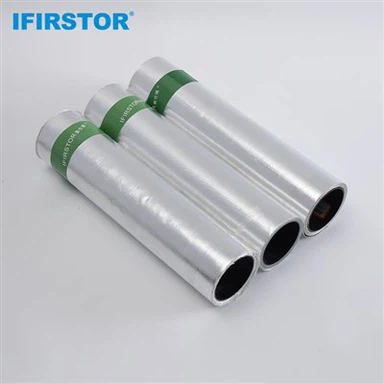

Heat-resistant Aluminum Foil Fiberglass Cloth

Main Uses

Silicone-impregnated fiberglass fabric is a high-performance material engineered for its exceptional fire resistance, high-temperature stability (withstanding extreme heat), and effective thermal insulation and acoustic damping properties. It is primarily used in high-temperature sealing, thermal barriers, and sound absorption applications.

Silicone-coated fiberglass fabrics for welding blankets offer exceptional thermal insulation and flame resistance. These properties make them critical safety materials across heavy-duty industries, including shipbuilding, aerospace, nuclear power facility insulation, and brake friction pads;
Metallurgy, electromechanics, petroleum, chemical industry, power plants, transportation, machinery and equipment, and other general industrial fields: hot and cold pipelines, containers, boilers, valves, flanges, pumps, as well as some of the proprietary equipment to provide power or and process temperature-related: such as turbines, engines, compressors, compressors, injection molding machines, sulfuric acid machine, etc., in high temperature conditions, good heat insulation and heat preservation materials, high temperature, good durability. Good durability;
High-temperature flue, duct bushings, high-temperature resistant flexible joints;
Furnace door seals and curtains of various heat-insulating industrial kilns.

Used as fire protection material

Archives, vaults, safes in high-grade office buildings, insulation and fireproof compartments in shopping malls, hotels, stations, schools and other important places, automatic fire curtains for fire protection;
Fire doors, fire curtains, fire blankets, mats for spark catching, protective clothing in high temperature environments, and other heat-insulating covering fireproof sewing products.

Used in new energy specialized fields

Power battery safety protection, energy storage battery safety protection, solar energy, air energy and other new energy fields of heat insulation and heat preservation, anti-fire, explosion-proof and other safety protection, insulation and safety protection of lines, instruments and related parts under high temperature and high voltage.

Used in the field of transportation specialties (aircraft, trains, ships marine industry, automobiles, etc.)

Power systems of airplanes and trains, such as thermal insulation of engines and related pipelines and components;
Powerhouse systems of ships, such as thermal insulation and heat preservation of turbines and related pipelines and components, bulkheads; fire blankets for welding and firefighting, fire-fighting blankets, welding blankets, escape blankets and so on;
Heat-insulating covers for automobile engines, protection for exhaust pipes of heavy oil engines, composite brake friction linings for high-speed racing cars;
Heat insulation and heat preservation, anti-fire, anti-explosion and other safety protection for battery compartments of new energy vehicles; insulation and safety protection for wiring, instrumentation and related parts of automobiles at high temperatures and high voltages.

Silicone Fiberglass Welding Blanket Fabric

Electrical insulation

Grey Lightweight Silicone Coated Fibreglass Cloth Has high electrical insulation, can withstand high voltage loads, and can be made into insulating cloth, sleeves and other products.

Non-metallic compensator

Non-metallic compensator as a flexible connecting device of pipeline, it can solve the problem of damage to pipeline by thermal expansion and contraction; as the base material of flexible expansion joint, it has high use temperature, corrosion resistance and aging resistance, excellent elasticity and flexibility. It is now widely used in petroleum, chemical, cement, steel, energy and other fields, and has achieved good results in use.

Anti-corrosion

Silicone Fiberglass Welding Blanket Fabric Can be used as internal and external anticorrosion layer of pipelines and storage tanks, with excellent anticorrosion performance, good high temperature resistance and high strength.

Other fields

Fiberglass fabric with double-sided silicone coating Can be used as protective items such as tents and cover items because of its aging and weather resistance.
